imageellipse

(PHP 4 >= 4.0.6, PHP 5, PHP 7)

imageellipseDraw an ellipse

Description

imageellipse ( resource $image , int $cx , int $cy , int $width , int $height , int $color ) : bool

Draws an ellipse centered at the specified coordinates.

Parameters


An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().

cx

x-coordinate of the center.

cy

y-coordinate of the center.

width

The ellipse width.

height

The ellipse height.

color

The color of the ellipse. A color identifier created with imagecolorallocate().

Return Values

Returns TRUE on success or FALSE on failure.

Examples

Example #1 imageellipse() example

<?php

// Create a blank image.
$image imagecreatetruecolor(400300);

// Select the background color.
$bg imagecolorallocate($image000);

// Fill the background with the color selected above.
imagefill($image00$bg);

// Choose a color for the ellipse.
$col_ellipse imagecolorallocate($image255255255);

// Draw the ellipse.
imageellipse($image200150300200$col_ellipse);

// Output the image.
header("Content-type: image/png");
imagepng($image);

?>

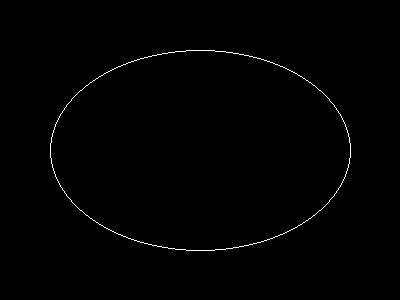

The above example will output something similar to:

Output of example : imageellipse()

Notes

Note:

imageellipse() ignores imagesetthickness().
